アイソレータ
【MIs-Pシリーズ】アイソレータ

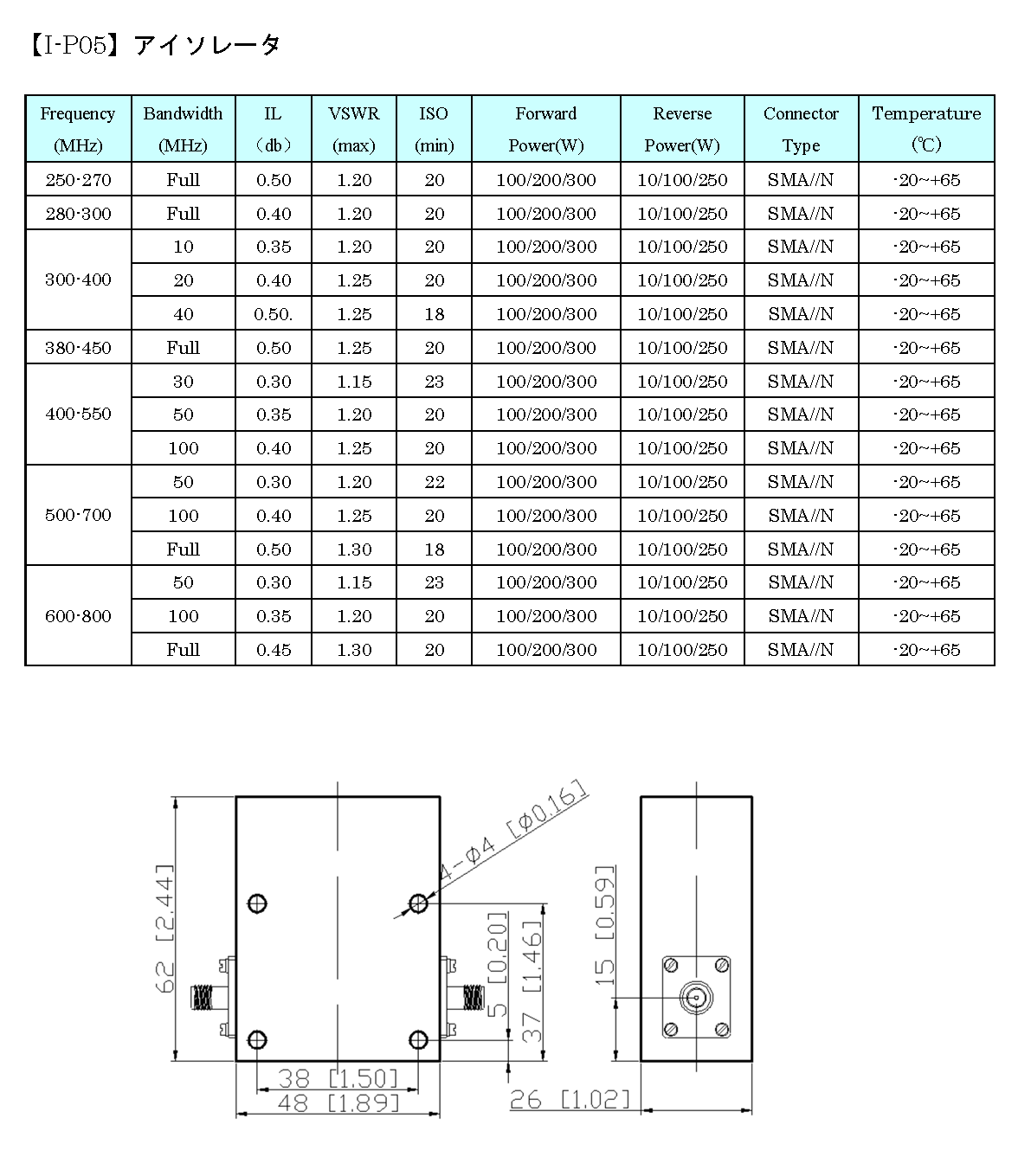

仕様【MIs-P05】
Frequency （MHｚ） | Bandwidth （MHｚ) | IL (dB) | VSWR （max) | ISO (min) | Froward Power(W) | Reverse Power(W) | Connector | Temperature(℃) |
| 250-270 | Full | 0.50 | 1.20 | 20 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 |
| 280-300 | Full | 0.40 | 1.20 | 20 | 100/200/300 | 10/100/250 | SMA,N | -20~+62 |
| 300-400 | 10 | 0.35 | 1.20 | 20 | 100/200/300 | 10/100/250 | SAM,N | -20~+65 |
| 20 | 0.40 | 1.25 | 20 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 | |
| 40 | 0.5 | 1.25 | 18 | 100/200/300 | 10/100/250 | SAM,N | -20~+65 | |
| 380-450 | Full | 0.50 | 1.25 | 20 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 |
| 400-550 | 30 | 0.30 | 1.15 | 23 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 |
| 50 | 0.35 | 1.20 | 20 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 | |
| 100 | 0.40 | 1.25 | 20 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 | |
| 500-700 | 50 | 0.30 | 1.20 | 22 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 |
| 100 | 0.40 | 1.25 | 20 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 | |
| Full | 0.50 | 1.30 | 18 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 | |
| 600-800 | 50 | 0.30 | 1.15 | 23 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 |
| 100 | 0.35 | 1.20 | 20 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 | |
| Full | 0.45 | 1.30 | 20 | 100/200/300 | 10/100/250 | SMA,N | -20~+65 |
詳しくはこちらをクリック

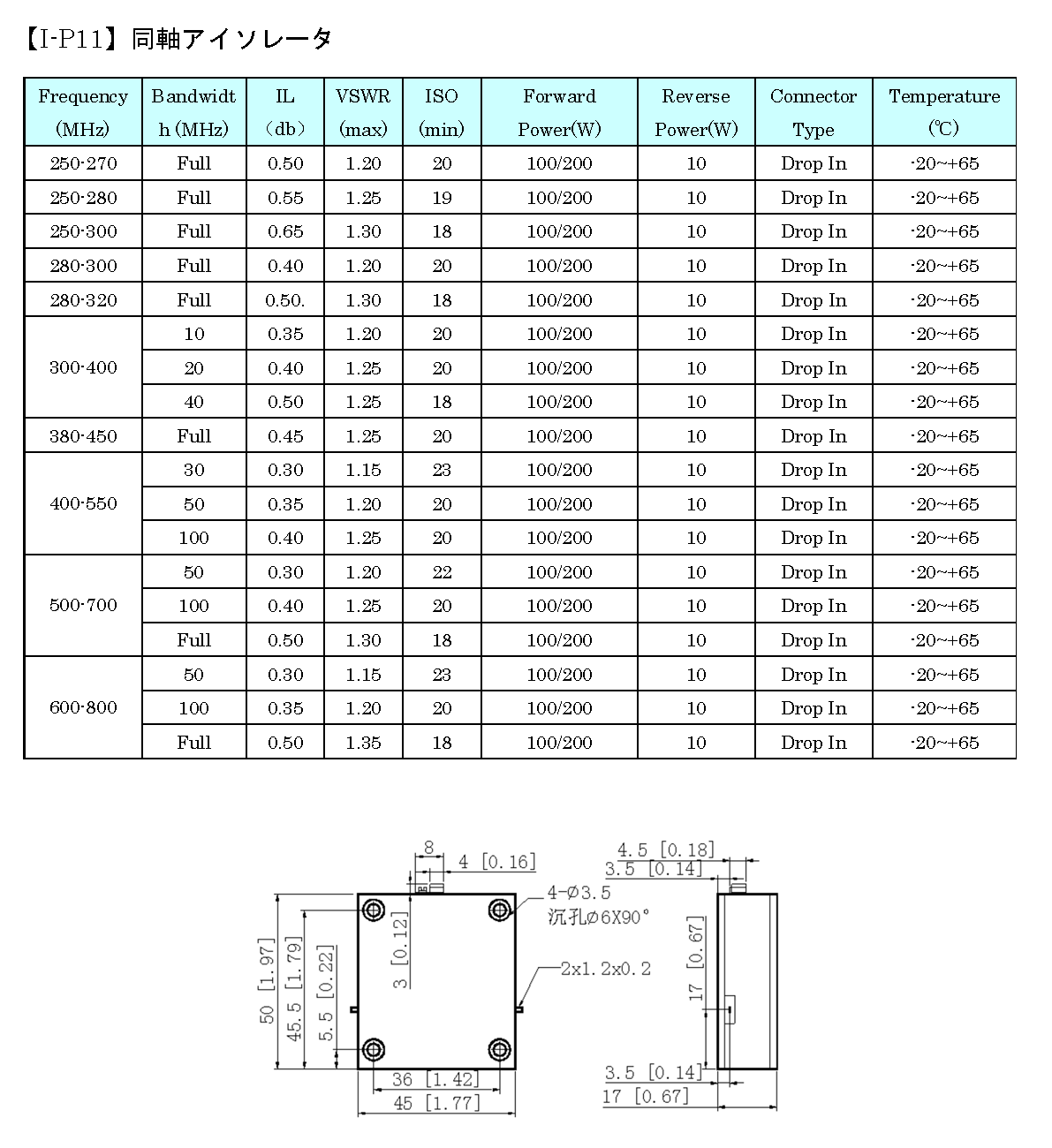

仕様【MIs-P11】
Frequency (MHz) | Bandwidth (MHz) | IL (dB) | VSWR (max) | ISO (min) | Forward Power(W) | Reverse Power(W) | Connector | Temperture (℃) |
| 250-270 | Full | 0.50 | 1.20 | 20 | 100/200 | 10 | Drop In | -20~+65 |
| 250-280 | Full | 0.55 | 1.25 | 19 | 100/200 | 10 | Drop In | -20~+65 |
| 250-300 | Full | 0.65 | 1.30 | 18 | 100/200 | 10 | Drop In | -20~+65 |
| 280-300 | Full | 0.40 | 1.20 | 20 | 100/200 | 10 | Drop In | -20~+65 |
| 280-320 | Full | 0.50 | 1.30 | 18 | 100/200 | 10 | Drop In | -20~+65 |
| 300-400 | 10 | 0.35 | 1.20 | 20 | 100/200 | 10 | Drop In | -20~+65 |
| 20 | 0.40 | 1.25 | 20 | 100/200 | 10 | Drop In | -20~+65 | |
| 40 | 0.50 | 1.25 | 18 | 100/200 | 10 | Drop In | -20~+65 | |
| 380-450 | Full | 0.45 | 1.25 | 20 | 100/200 | 10 | Drop In | -20~+65 |
| 400-500 | 30 | 0.30 | 1.15 | 23 | 100/200 | 10 | Drop In | -20~+65 |
| 50 | 0.35 | 1.20 | 20 | 100/200 | 10 | Drop In | -20~+65 | |
| 100 | 0.40 | 1.25 | 20 | 100/200 | 10 | Drop In | -20~+65 | |
| 500-700 | 50 | 0.30 | 1.20 | 22 | 100/200 | 10 | Drop In | -20~+65 |
| 100 | 0.40 | 1.25 | 20 | 100/200 | 10 | Drop In | -20~+65 | |
| Full | 0.50 | 1.30 | 18 | 100/200 | 10 | Drop In | -20~+65 | |
| 600-800 | 50 | 0.30 | 1.15 | 23 | 100/200 | 10 | Drop In | -20~+65 |
| 100 | 0.35 | 1.20 | 20 | 100/200 | 10 | Drop In | -20~+65 | |
| Full | 0.50 | 1.35 | 18 | 100/200 | 10 | Drop In | -25~+65 |
詳しくはこちらをクリック

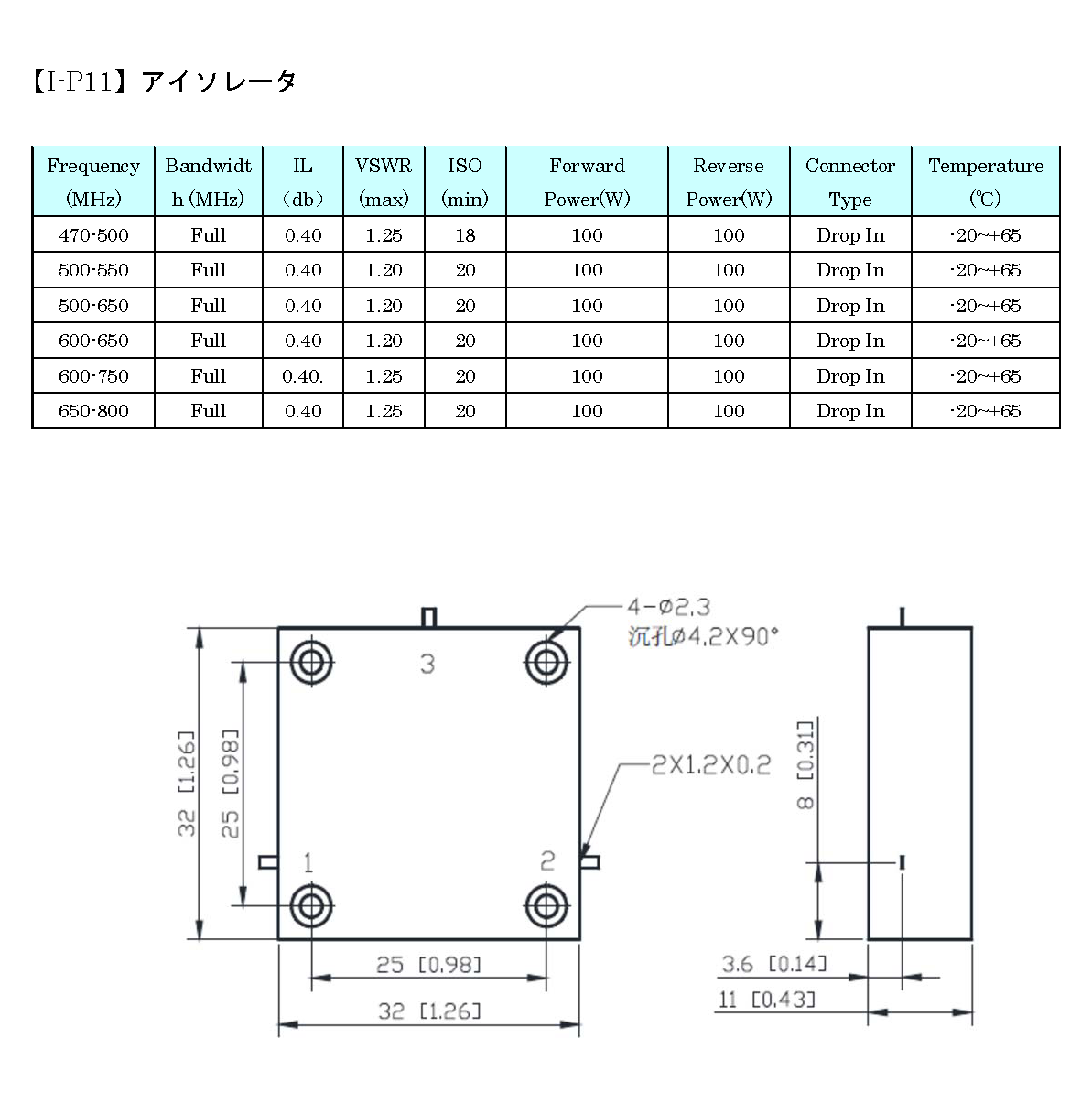

仕様【MIs-P11】
Frequency (MHz) | Bandwidth (MHz) | IL (dB) | VSWR (max) | ISO (dB) | Forward Power(W) | Reverse Power(W) | Connector | Temperature(℃) |
| 470-500 | Full | 0.40 | 1.25 | 18 | 100 | 100 | Drop In | -20~+65 |
| 500-550 | Full | 0.40 | 1.20 | 20 | 100 | 100 | Drop In | -20~+65 |
| 500-650 | Full | 0.40 | 1.20 | 20 | 100 | 100 | Drop In | -20~+65 |
| 600-650 | Full | 0.40 | 1.20 | 20 | 100 | 100 | Drop In | -20~+65 |
| 600-750 | Full | 0.40 | 1.25 | 20 | 100 | 100 | Drop In | -20~+65 |
| 650-800 | Full | 0.40 | 1.25 | 20 | 100 | 100 | Drop In | -20~+65 |
詳しくはこちらをクリック
